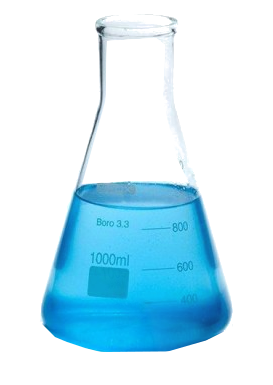

Erlenmeyer Flask Narrow Neck Glass Narrow Neck with graduation

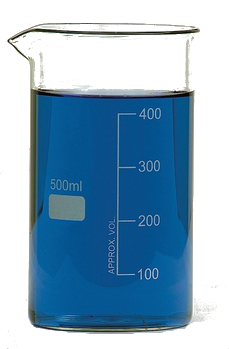

Beaker Tall Form Glass Tall Form, with spout and graduation

Code	Capacity ml	Base Diameter mm	Neck mm	Height mm
CF0025N	25	42	22	75
CF0050N	50	51	22	90
CF0100N	100	64	22	105
CF0250N	250	85	34	145
CF0500N	500	105	34	180
CF1000N	1000	131	42	220
CF2000N	2000	166	50	280

Code	Capacity ml	Diameter mm	Height mm
BK0025T	25	38	70
BK0050T	50	38	70
BK0100T	100	48	80
BK0150T	150	54	95
BK0250T	250	60	120

Erlenmeyer Flask Wide Neck Glass Wide Neck with graduation

Weighing Scoop, Glass with open tubular arm, suitable for use when small quantity of dyes or powders are to be weighed.

Code	Capacity ml	Outer Dia. mm	Height mm
CD0100	100	70	40
CD0150	150	80	45
CD0300	300	95	55
CD0500	500	115	65
CD0900	900	140	75
CD2000	2000	190	90

Crystallizing Dish Glass without spout (add a suffix -ws for with spout pattern)

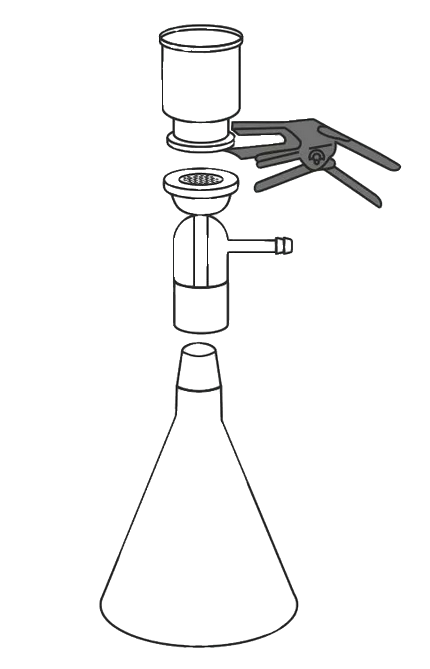

Filtration Glass Holder glass membrane filter holder, for 47 mm diameter membrane Consist of reservoir capacity 300 ml (marking till 250 ml ) sintered base with side arm conical flask 1 L with socket 40/35 and metal clamp

Code	GF1000

Code	Capacity ml	Sub Div ml	Tolerance ±ml
BU010	10	0.02	0.020
BU025	25	0.05	0.030
BU050	50	0.10	0.050

Code	Capacity ml	Diameter mm	Height mm
BK0005L*	5	22	30
BK0010L*	10	26	36
BK0025L	25	34	50
BK0050L	50	42	60
BK0100L	100	50	70
BK0150L	150	60	80
BK0250L	250	70	95
BK0400L	400	80	110
BK0600L	600	90	125
BK1000L	1000	105	145
BK2000L	2000	132	185
BK3000L	3000	160	210
BK4000L	4000	180	250
BK5000L	5000	195	275
* no graduation

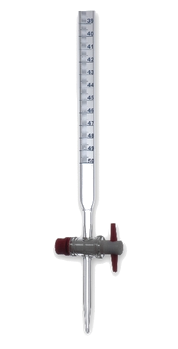

Burette Class AS PTFE Stopcock, Schellbach single bore, PTFE Stopcock, waiting time 30-seconds

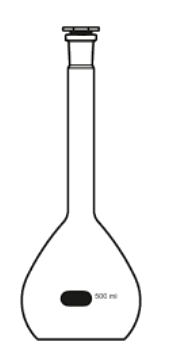

Volumetric Flask Class A Glass with one graduation mark and plastic stopper

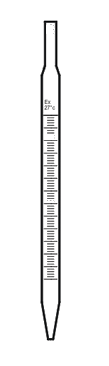

Graduated Pipette Class AS, Type 3, Glass Calibrated zero at top, graduated to jet, waiting time 15 sec

Code	Capacity ml	Sub Div ml	Tolerance ±ml
MP01	1	0.01	0.007
MP02	2	0.02	0.010
MP05	5	0.05	0.030
MP10	10	0.10	0.050
MP25	25	0.20	0.100

Volumetric Pipette Class AS Glass Bulb type, waiting time 15 seconds

Code	Capacity ml	Tolerance ±ml
BP001	1	0.008
BP002	2	0.010
BP005	5	0.015
BP010	10	0.020
BP020	20	0.030
BP025	25	0.030
BP050	50	0.050
BP100	100	0.080

Measuring Cylinder Class A Glass Hexagonal Base, with spout and graduation

Code	Capacity ml	Sub Div ml	Tolerance ±ml
MC0005	5	0.1	0.05
MC0010	10	0.2	0.10
MC0025	25	0.5	0.25
MC0050	50	1.0	0.50
MC0100	100	1.0	0.50
MC0250	250	2.0	1.00
MC0500	500	5.0	2.50
MC1000	1000	10.0	5.00
MC2000	2000	20.0	10.00
# Available in USP Standard when request USP - individual work certificate and serially numbered.

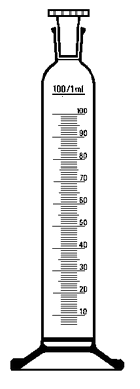

Mixing Cylinder (Measuring Cylinder with Stopper) , Class A Glass Round base

Code	Capacity ml	Base Diameter mm	Neck mm	Height mm
CF0025W	25	42	31	70
CF0050W	50	51	34	85
CF0100W	100	64	34	105
CF0150W	150	64	34	105
CF0250W	250	85	50	140
CF0300W	300	85	50	140
CF0500W	500	105	50	175
CF1000W	1000	131	50	220
CF2000W	2000	153	72	276

Code	Capacity ml	Tolerance ±ml	N/S
VF0001*	1 ml	0.025	10/19
VF0002*	2 ml	0.025	10/19
VF0005	5 ml	0.040	10/19
VF0010	10 ml	0.040	10/19
VF0020	20 ml	0.040	10/19
VF0025	25 ml	0.060	12/21
VF0050	50 ml	0.060	12/21
VF0100	100 ml	0.100	14/23
VF0200	200 ml	0.150	14/23
VF0250	250 ml	0.150	14/23
VF0500	500 ml	0.250	19/26
VF1000	1000 ml	0.400	24/29
VF2000	2000 ml	0.600	29/32
* Non ISO standard # Available in Amber Glass  when request ## Glass Stopper when request

Code	Capacity ml	Sub Div ml	Tolerance ±ml
MX0010	10	0.2	0.10
MX0025	25	0.5	0.25
MX0050	50	1.0	0.50
MX0100	100	1.0	0.50
MX0250	250	2.0	1.00
MX0500	500	5.0	2.50
MX1000	1000	10.0	5.00
MX2000	2000	20.0	10.00

Code	Capacity ml	N/S
SF0050	50	19/26
SF0100	100	24/29
SF0250	250	24/29
SF0500	500	24/29
SF1000	1000	24/29
SF2000	2000	29/32

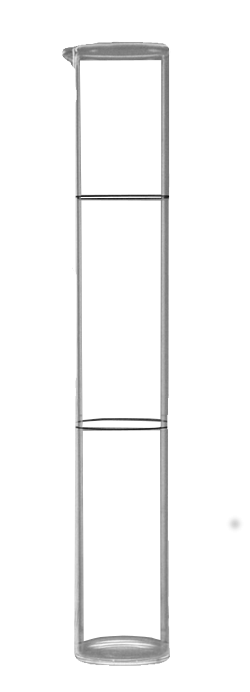

Nessler Cylinder for colour comparison, with spout

Code	Capacity ml	Sub Div ml	Tolerance ±ml
NC050	50	50.0	0.4
NC100	100	50 & 100	0.8

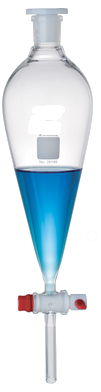

Separating funnel Conical Shape, Glass PTFE Stopcock, PE Stopper

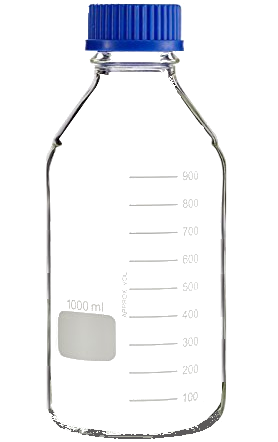

Laboratory Bottle Complete with Blue Screw Cap and Pouring Ring

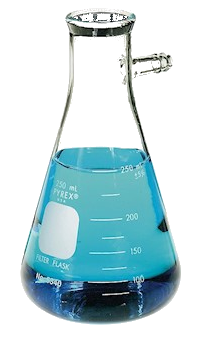

Filtering Flask, Plain, suit 10 mm bore flexible tubing

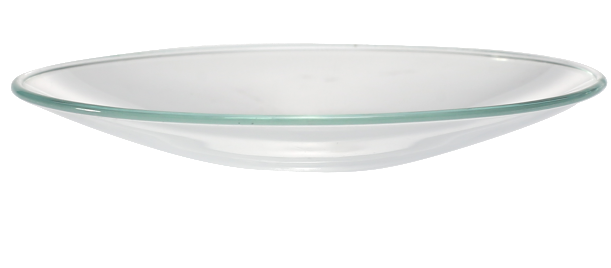

Watch Glass

Code	Diameter
WG050	50 mm
WG060	60 mm
WG070	70 mm
WG080	80 mm
WG100	100 mm
WG120	120 mm
WG150	150 mm
WG200	200 mm

Code	Capacity	Fit Rubber
FTF0250	250 ml	6
FTF0500	500 ml	7
FTF1000	1 L	8
FTF2000	2 L	9

Code	Capacity	DIN Thread	Base Dia/mm	Ht/mm
MB0025*	25 ml	GL25	36	70
MB0050	50 ml	GL32	46	87
MB0100	100 ml	GL45	56	100
MB0250	250 ml	GL45	70	138
MB0500	500 ml	GL45	86	176
MB1000	1 L	GL45	101	225
MB2000	2 L	GL45	136	260
* with specially shaped glass edge, no pouring ring required. Amber Glass also available when request Spare Screw Cap and Spare Pouring Ring also sell separately when request.

Code	Capacity
WS03	3 ml
WS06	6 ml
WS10	10 ml

Beaker Low Form Glass Low Form, with spout and graduation

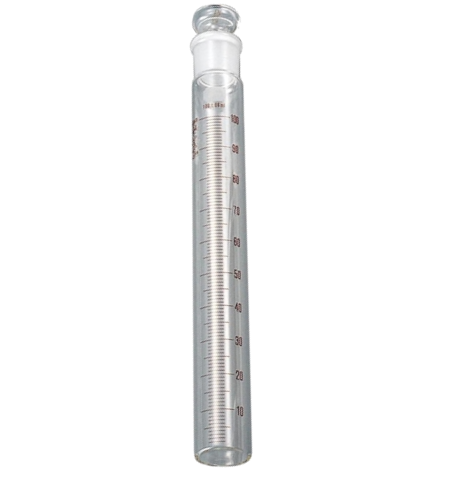

Nessler Tube with glass Stopper Graduation, without base

Code	Capacity ml	Sub Div ml	Tolerance ±ml
NCG050	50	1.0	0.5
NCG100	100	1.0	1.0
